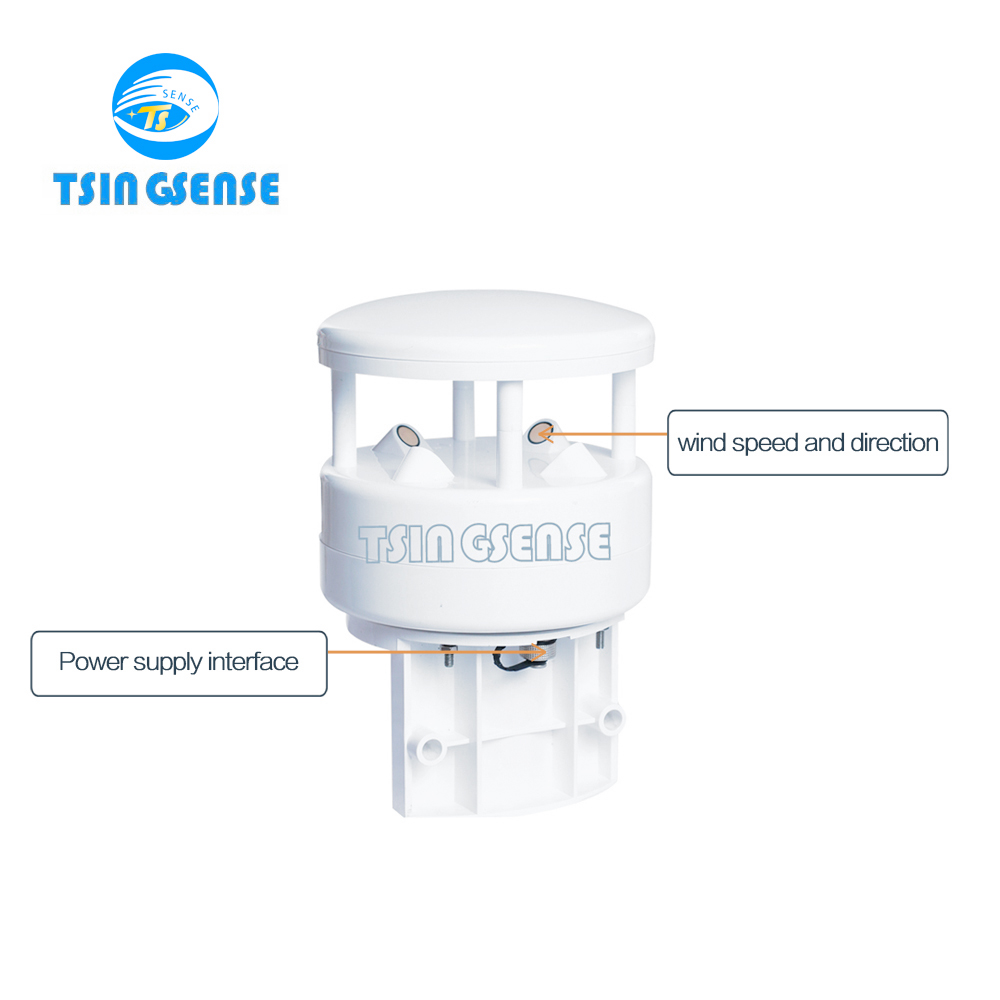

WTS200 Meteorological Sensor
Ultrasonic Anemometer High Accuracy Meteorological Wind Sensor
- Beijing Tsingsense Technology
- sales@tsingsense.com
- WeChat: 18311056110
TS WTS200 integrated meteorological sensor is a professional-grade sensor independently developed by our company to measure multiple meteorological elements. It can simultaneously measure two meteorological elements including wind direction, wind speed index. It has the advantages of high accuracy, fast response time, strong anti-interference ability, and serial port output.Users can make measurements directly through the PC or external instruments.
Technical Parameters
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～75m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC | |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature | -40℃～+80℃ | |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh | |
Size | 140mm*140mm*212mm | Weight | 0.6kg | |
Measure what you need
Model | Temperature | Humidity | Air pressure | Wind speed and direction | Rainfall | Radiation | UV |
WTS200 | ✔ | ||||||
WTS201 | ✔ | ✔ | |||||
WTS300 | ✔ | ✔ | ✔ | ||||
WTS400 | ✔ | ✔ | ✔ | ✔ | |||
WTS500 | ✔ | ✔ | ✔ | ✔ | |||
WTS600 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
WTS700 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
WTS800 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
TS WTS integrated meteorological sensor is a professional-grade sensor independently developed by our company to measure multiple meteorological elements. It can simultaneously measure eight meteorological elements including temperature, humidity, air pressure, wind direction, wind speed, rainfall, radiation, and UV index. It has the advantages of high accuracy, fast response time, strong anti-interference ability, and serial port output.Users can make measurements directly through the PC or external instruments.
Easy integration and expansion
The WTS series transmitters make a great cornerstone of any cost-effective weather monitoring system. They are compact, easy to install, and almost effortless to maintain.
With the WTS series, you have a wide range of digital and analog communications connection options to choose from. Analog input options for additional third-party sensors enable expansion of the array to include solar radiation, water and snow levels, and external temperature sensors.
The new Modbus interface enables easy integration with automation, instrumentation, and control systems in various industrial applications. All WTS models integrate into third-party data collection platforms with ease.
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
Industry Applications
Tuluhe Meteorological Monitoring Station
Tuluhe Town, Hulunbuir City, Inner Mongolia Autonomous Region, located deep in the Greater Khingan Range, has almost no summer. The annual average temperature is below 0 ℃, with a monthly average temperature of -27.1 ℃ and a historical low temperature of -45 ℃. With the policy support of the Hulunbuir Meteorological Bureau, the WTS500 Five Element Meteorological Observation Equipment Extreme Cold Test Base has been established to measure temperature, humidity, air pressure, wind speed, and direction。
Yunnan Dali Wind Power Optimization Monitoring Station
Yunnan Dali Wind Power Optimization Monitoring Station Yunnan Power Grid Company has deployed WTS600 six element meteorological sensors for wind power in response to the complex micro terrain and climate in Dali area, collecting real-time data on wind speed, direction, temperature and humidity, air pressure, rainfall, and other factors at different heights. By combining numerical weather forecasting and developing a dynamic model wind turbine selection method, the accuracy of ultra short term power prediction for wind farms has been improved from 86.3% to 90.5%, significantly enhancing the efficiency of new energy consumption. This project solves the problem of large differences in wind turbine output in complex areas through deep integration of meteorological data and algorithms.
Meteorological Port Maritime Integrated Services
The Qingdao Meteorological Bureau, in collaboration with maritime and port enterprises, has created a comprehensive “one map” of meteorological port maritime services, integrating 1400 WTS multi-element automatic weather stations, buoy stations, weather radar, and satellite monitoring data to form an intelligent decision-making platform that integrates multiple sources. By using artificial intelligence and IoT technology, automatic generation and push of meteorological risk warnings can be achieved, significantly improving the efficiency of port operation scheduling and ship navigation.
