MWTS07 Outdoor Weather Sensor

MWTS07 Precision Meteorological Environmental Monitoring Sensors

TS MWTS07 integrated intelligent meteorological sensor is a new generation of meteorological environment monitoring equipment independently developed by our company, specially tailored for meteorological environmental monitoring, smart city, industrial environment, electricity and agricultural and forestry meteorological environment monitoring. The device integrates the synchronous monitoring function of eight meteorological elements and can accurately measure meteorological elements such as temperature, humidity, air pressure, wind direction, wind speed, rainfall, radiation.

1. Integrated structure, a single device synchronously collects parameters such as temperature, humidity, air pressure, wind
speed, wind direction,rainfall, lightintensity,radiation, UV, etc., reducing the cost of deploying multiple devices; supports –40℃~+80℃ wide temperature measurement, 0~40m/s strong wind monitoring and 0~24mm/min rainfall measurementrange, adapting to extreme climate scenarios
2. Power consumption ≤0.4w; optional solar energy, mains electricity; can be installed on a hollow mast with a diameter of 10mm-30mmφ,tripod

Technical Parameters

Parameter

Measuring range

Resolution

Accuracy

Measuring principle

Air Temperature

-40℃～+60℃

0.1℃

±0.2℃

Platinum resistance

Air Humidity

0%～100%Rh

0.1%Rh

±2%Rh

Capacitance

Air pressure

10～1300hPa

0.1hPa

±0.3hPa

Silicon piezoresistive

 wind direction

0～360°

1°

±3°

Ultrasonic

Wind speed

0～40m/s

0.1m/s

±0.3m/s or3%

Ultrasonic

Rainfall

0～24mm/min

0.1mm/0.01mm

±5%

Optical/Radar

Radiation

0～2000w/㎡

0.1w/㎡

≤ 5%

Silicon Photodetector

UV

0 ～ 15level

 1level

±1level

Photoresistor

Reliability

Mean time between failures (MTBF), design value 85000h

Operating voltage

9V～30VDC

Data Protocol

Support ASCII code and Modbus protocol

Operating temperature

 -40℃～+80℃

Output

RS485, RS232, SDI12, 4-20mA, 0-5V optional

Operating humidity

0～100%Rh

Size

120mm*120mm*255mm

Weight

0.7kg

Measure what you need

Model

Temperature

Humidity

Air pressure

Wind speed and direction

Rainfall

Radiation

UV

MWTS02



✔



MWTS03

✔

✔

  ✔



MWTS05

  ✔

 ✔

✔

✔



MWTS06

✔

 ✔

✔

✔

✔



MWTS07

✔

✔

✔

✔

✔

✔



MWTS08

✔

✔

✔

✔

✔

✔

✔

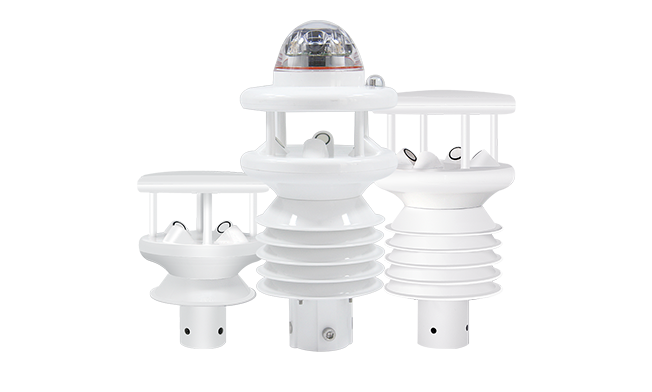

TS MWTS series integrated intelligent meteorological sensor is a newgeneration of meteorological environment monitoring equipment independently developed by our company, specially tailored for meteorological environmental monitoring, smart city, industrial environment, electricity and agricultural and forestry meteorological environment monitoring. The device integrates the synchronous monitoringfunctionof eightmeteorological elements andcanaccurately measure meteorological elements such as temperature, humidity, air pressure, wind direction, wind speed, rainfall, radiation, and ultraviolet rays.

Easy integration and expansion

The MWTS series transmitters make a great cornerstone of any cost-effective weather monitoring system. They are compact, easy to install, and almost effortless to maintain.

With the MWTS series, you have a wide range of digital and analog communications connection options to choose from. Analog input options for additional third-party sensors enable expansion of the array to include solar radiation, water and snow levels, and external temperature sensors.

The new Modbus RTU interface enables easy integration with automation, instrumentation, and control systems in various industrial applications. All MWTS models integrate into third-party data collection platforms with ease.

Durability and reliability

MWTS Series focuses on maintenance-free operations in a cost-effective manner. With no moving parts, MWTS models are durable, can be calibrated in the field, and require very little maintenance.

  • Ultrasonic wind sensors to determine horizontal wind speed and direction
  • Silicon piezoresistive sensor for barometric pressure
  • Capacitance sensor for humidity and resistive platinum sensor for air temperature
  • Optical sensor to measure precipitation without flooding, clogging, wetting, or evaporation losses

Industry Applications

Electric Power

The device is equipped with solar power supply, ultra-long standby and data encryption functions, and has been successfully used in areas prone to strong winds and rainstorms, reducing the frequency of manual inspections by 50% and shortening the fault response time to within 1 hour.

learn more

Smart City

Through the “one day in advance, one level higher” early warning strategy, it is expected that the number of days with good air quality will increase by 15% year-on-year in 2025.

learn more

High Cold Area

Its wide temperature range (-40℃~60℃) and IP65 protection level support uninterrupted monitoring in frozen areas throughout the year and reduce equipment failure rate by 90%.

learn more
